The Lynx 3.0 , redefining entry-level thermal imagers.

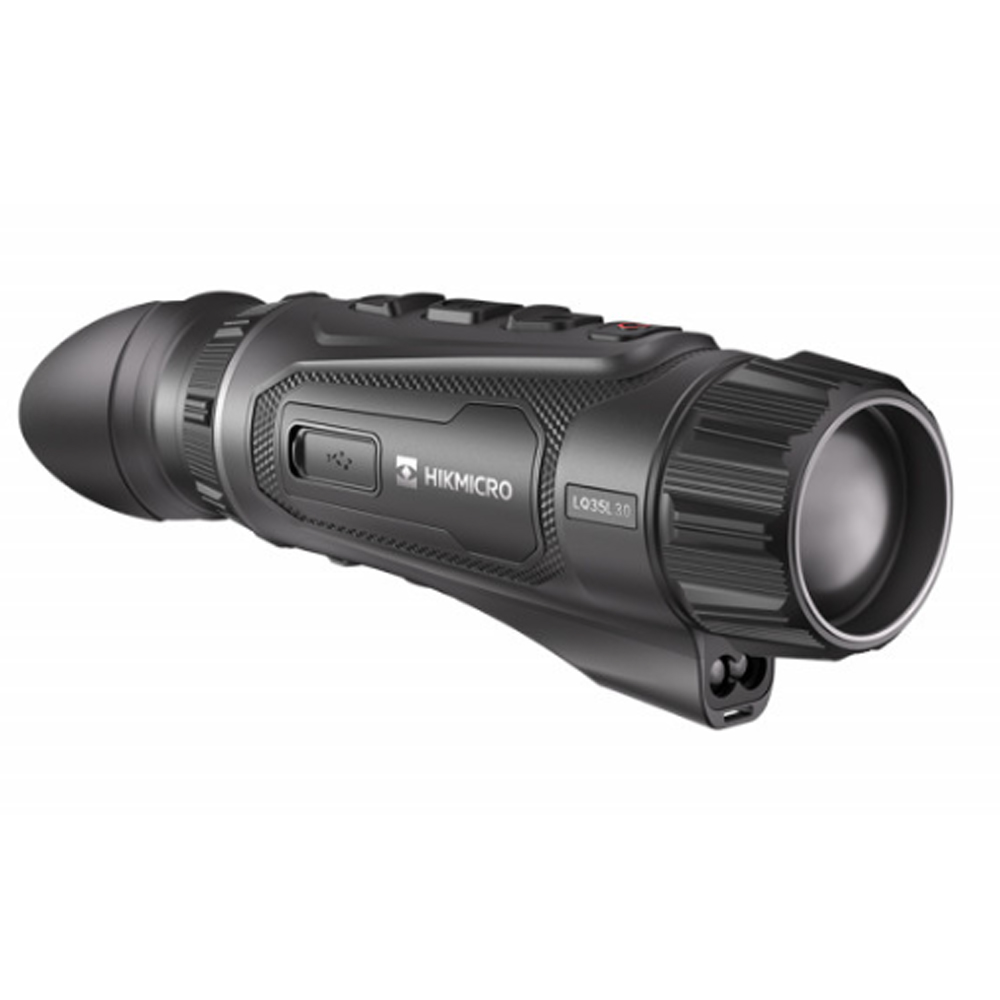

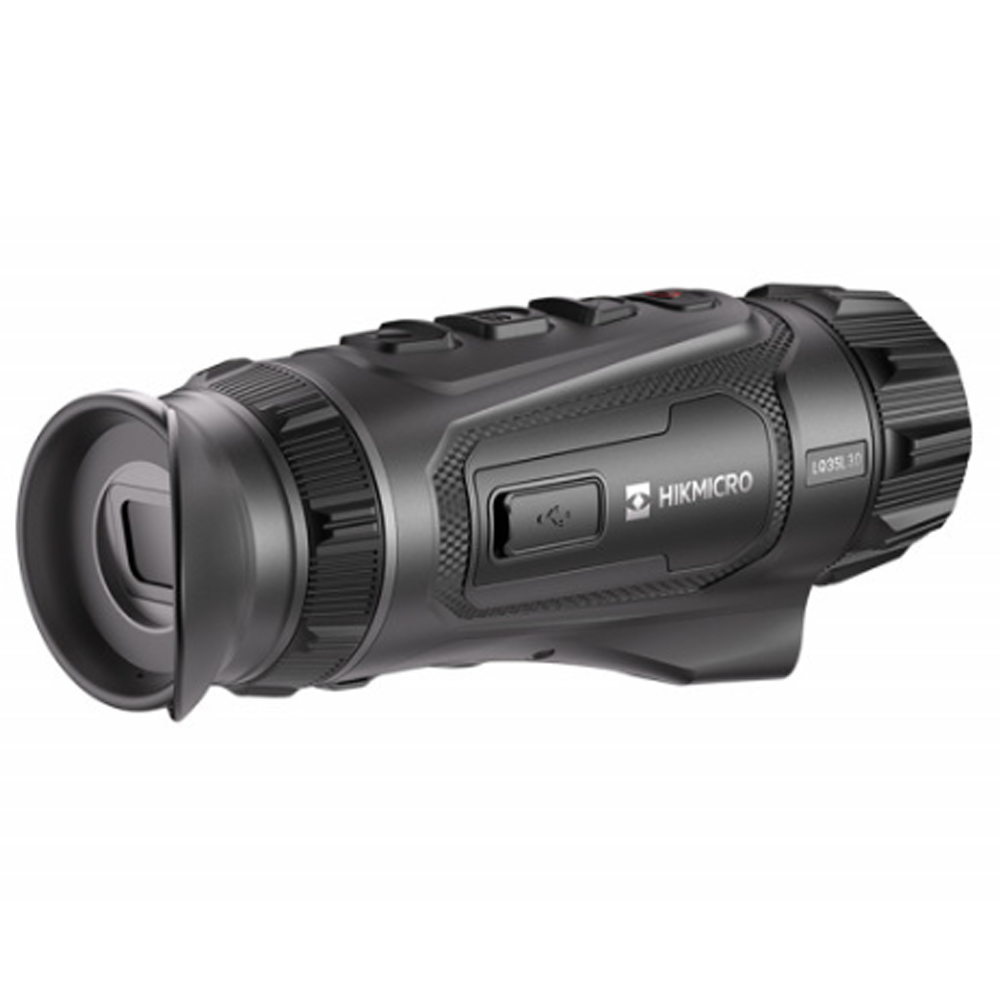

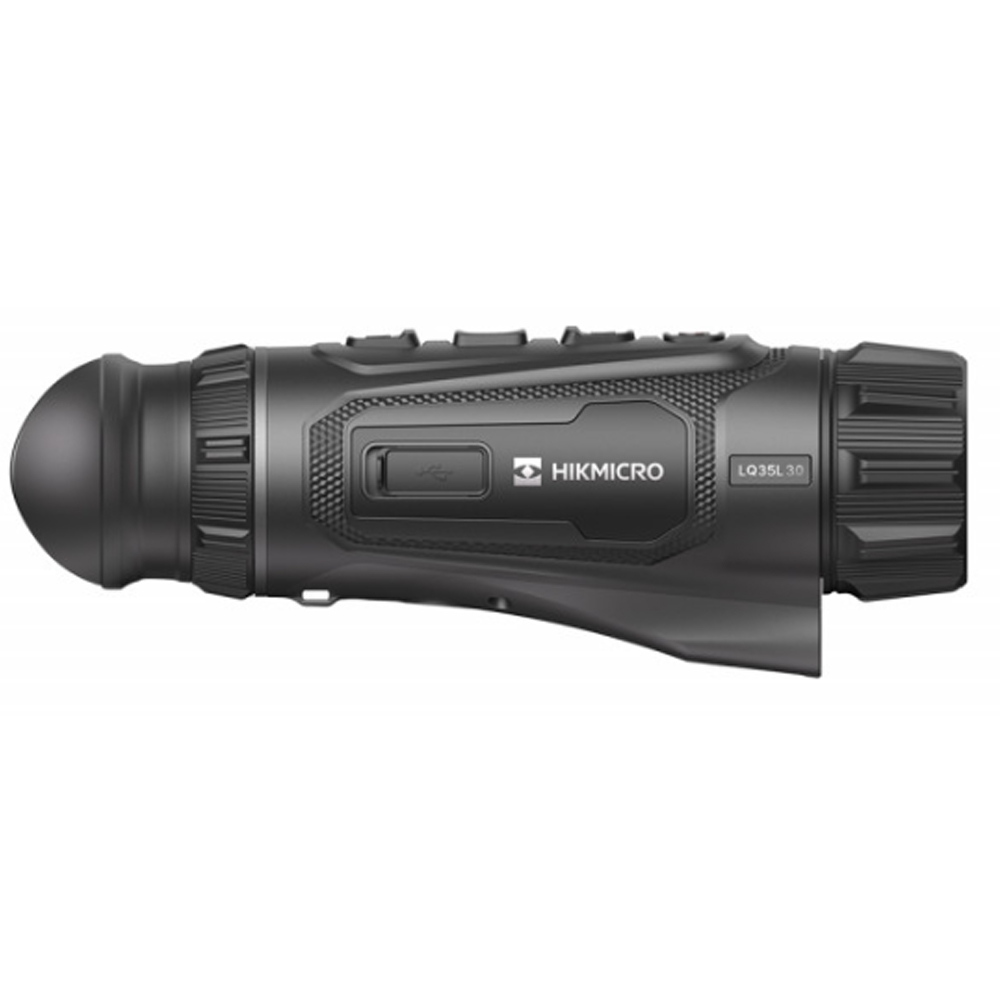

The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640 x 512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5 × 7.5 degree field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.

For the First time the LQ35 introduces an integrated Laser Range Finder (LRF) with a 905 nm wavelength and a maximum measuring range of 1000m, providing precise distance measurement directly within the thermal imaging system

Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.

At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.

Specifcations:
Max. Resolution - 640 x 512
Frame Rate - 50 Hz
Pixel Interval - 12 micrometer
Response Waveband - 8 - 14 micrometer
NETD - < 15 mK (@25C), F#=1.0
Lens (Focal Length) - 35 mm, f1.0
Focus Mode - Focus Ring
Detection Range - 1800 m
Min. Focusing Distance - 3.5 m
Magnification - 1.9x - 15.2x (8x)
Field of View (H × V) - 12.5 × 7.5 degree / 21.9 m x 13.2 m @100 m
Display - 1920 × 1080, 0.49 in, AMOLED
Palettes - Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil - 6 mm
Eye Relief - 20 mm
Diopter (Range) - -5D to +3D
Brightness Adjustment - Yes
Tone Adjustment - Cold, Warm
Contrast Adjustment - Yes
Zoom Pro - Yes
HSIS (HIKMICRO Shutterless Image System) - Yes
Image Pro 3.0 - Yes
Record Video - Yes
Capture Snapshot - Yes
Audio Recording - Yes
Standby Mode - Yes
Built-in Memory - 64 GB EMMC
PIP - Yes
Hotspot - 2.4 GHz / 5 GHz Wi-Fi
Hot Track - Yes
Distance Measurement - Yes
Local Album - Yes
Battery Type - Replaceable & Rechargeable Li-ion 18650
Battery Operating Time - 5-hour continuous (@25C), 4.5-hour continuous (@-20C)
Type-C Power Supply - 5V DC, 2A
External Power Supply - Supported, Direct Charging Supported
Safety Class for Laser - Class 1
Wavelength - 905 nm
Max Measuring Range - 1000 m
Min. Measuring Range - 10 m
Measurement Accuracy - plus/minus 1 m
Protection Level - IP67
Dimension - 169.6 x 53.6 x 49.5 mm
Weight - 354.5 g (with battery)
Working Temperature - -30C to 45C (-22F to 113F)
Humidity - ≤ 90%
