The LCA Draw Board 2.0 features an upgraded winch/clutch system and a redesigned Precision Bow Holder, incorporating feedback from archers and dealers worldwide.

It includes a heavy-duty 1,500 lb-rated strap (500lb working load & 1,500lb breaking point), a solid steel hook with a safety loop, and a Precision Bow Holder with a gripper that mimics your hand's contact points.

The adjustable, spring-loaded side plates keep the bow level, while alignment marks ensure everything stays square.

The system allows for greater precision and is perfect for checking cam timing, lean, and setting the arrow rest.

The LCA Draw Board 2.0 can be mounted on your table using the included lag bolts and washers or inside any LCA bow press. We offer a Standard and Ultimate model. Check the list below to see which model you need for the correct fit.

Each draw board bracket will have preinstalled space filler to ensure the best fit inside each bow press arm. If your press is older than 2009, please get in touch with LCA before you purchase.

Features:

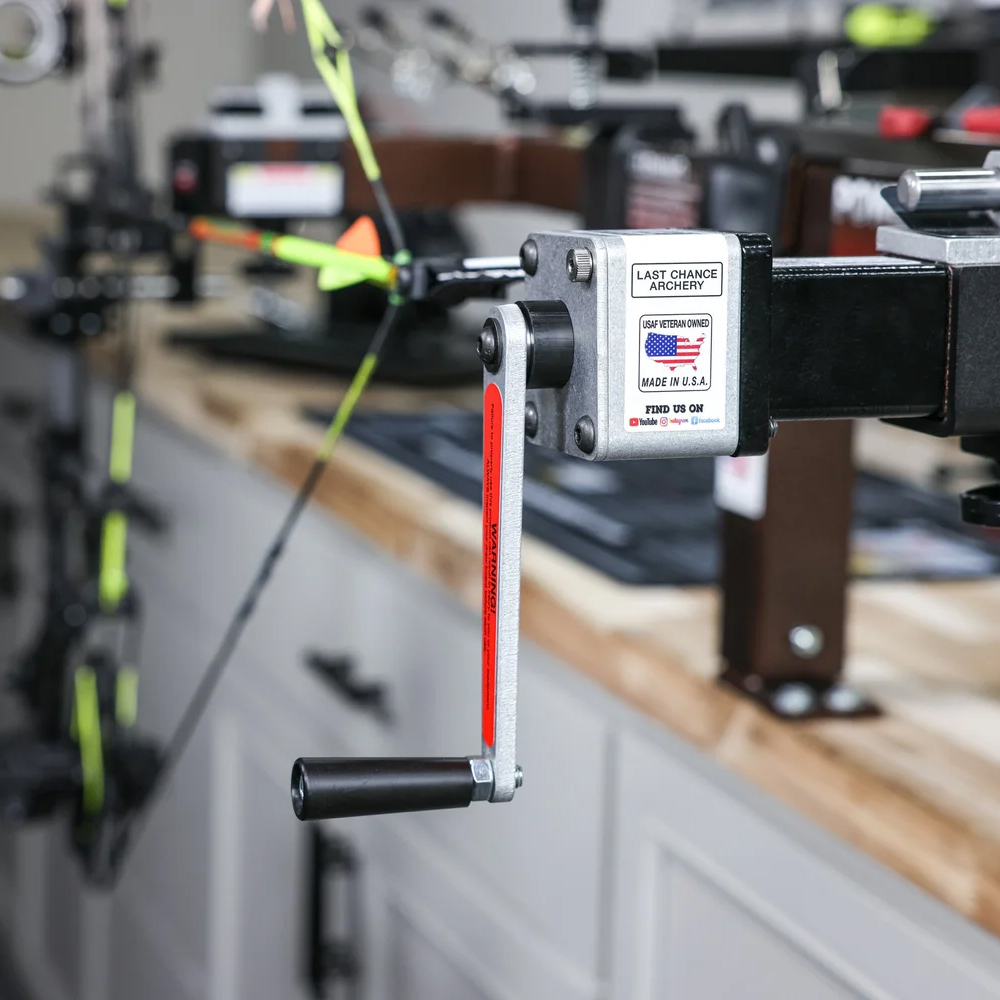

Custom-designed winch & clutch system
100lb max weight (Approved for compounds only)
HEAVY-DUTY 1" wide custom strap rated to a 1,500lb breaking point

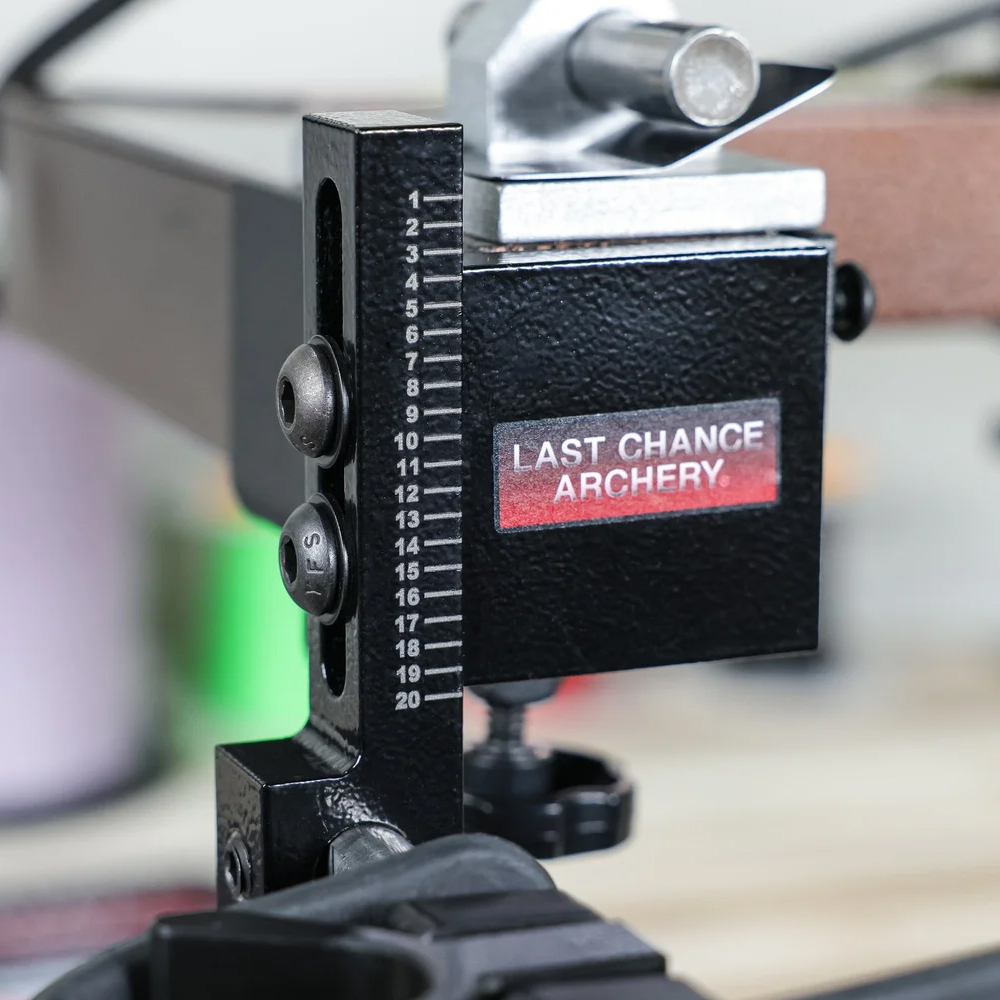

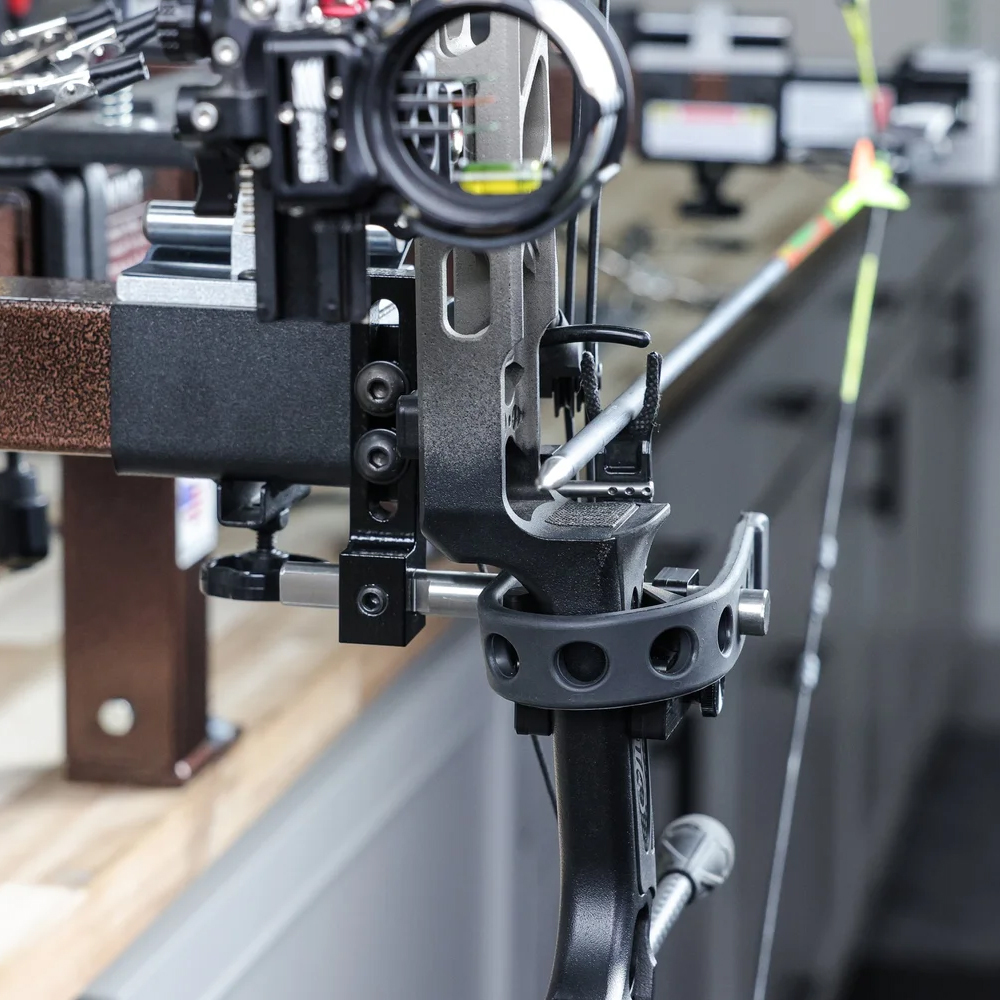

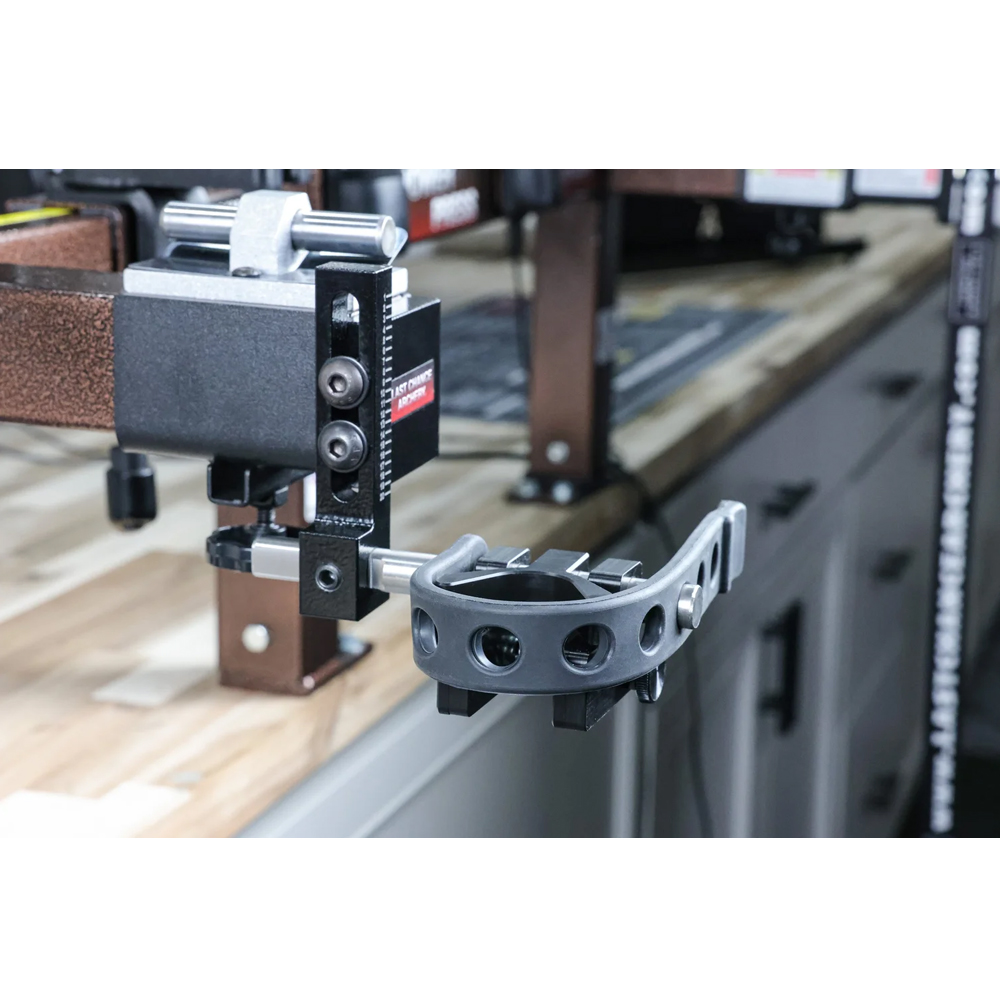

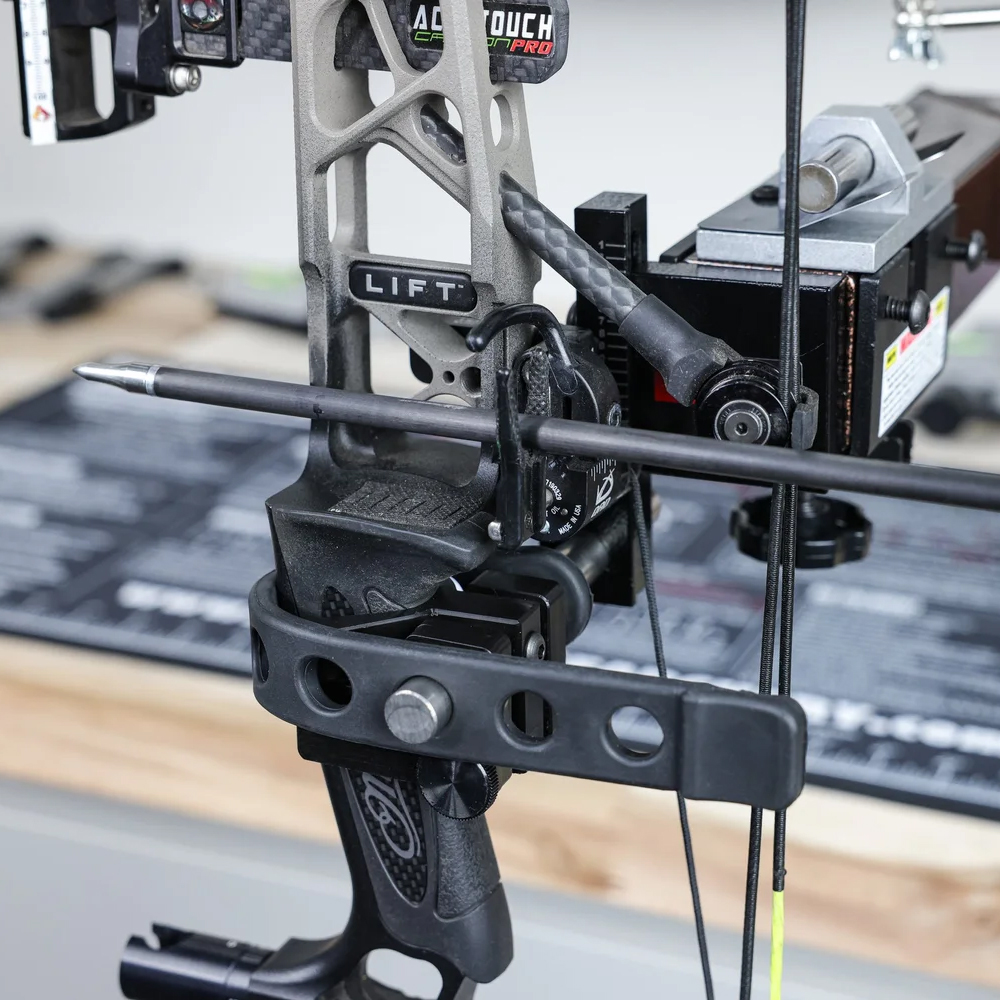

Precision Bow Holder
(Steel elevation block & Stainless steel depth adjustment rod)
Bow holder height & depth adjustments
Custom bow grip
Spring-loaded side plates
Custom all steel hook with safety loop
Multiple alignment points
Mount inside your LCA bow press or on your bench

Included:

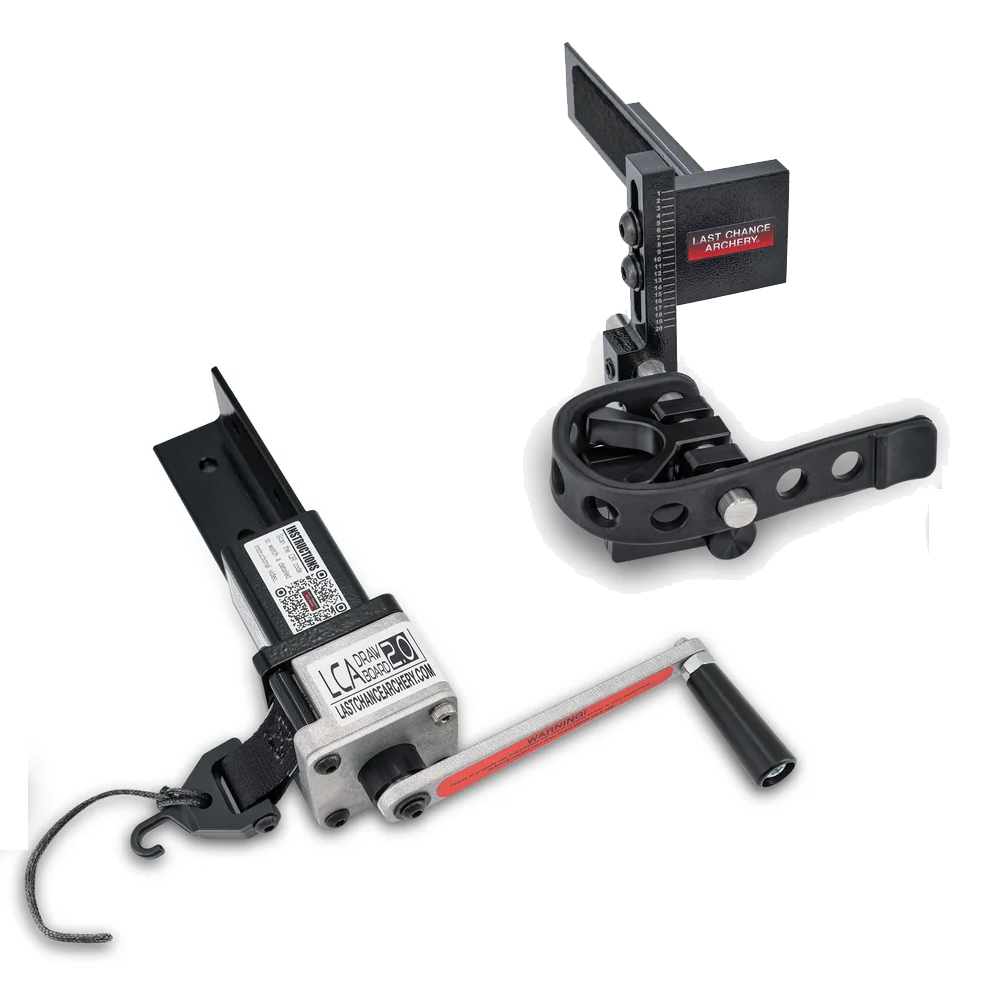

1 x 2.0 Winch
1 x Precision Bow Holder
1 x Steel spacer
4 x Lag screws
4 x Washers
2 x Extra space filler strips
